Bossed Screwed Table D/E BS10 - Pipe Fittings - Flange Self Galv
by Marla
From £21.69
From £26.03
eachAvailable for Collection or Delivery
Store Pickup
Collect
Wed May 28
th FREE
Standard
As soon as
Thu May 29
th FREE
Pre-Noon
As soon as
Thu May 29
th £10.00
Pre-10:30am
As soon as
Thu May 29
th £15.00
Pre-9:00am
As soon as
Thu May 29
th £30.00
Free delivery: Thu May 29th
Fastest delivery: 9am Thu May 29th
Secure Transactions
Product Description

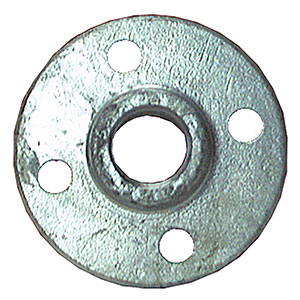

Bossed Screwed Table D/E BS10 - Pipe Fittings - Flange Self Galv
Specification
1" Nominal Bore - 33.7mm Pipe OD - 114.3mm Outside Diameter - 82.6mm Bolt Circle Diameter - 14mm Bolt Hole to suit M12 Bolts - 4 Bolt Holes - 12.7mm Flange Thickness - Boss Diameter Top 47.6mm Bottom 57.9mm - Height 11.1mm
1 1/2" Nominal Bore - 48.3mm Pipe OD - 133.4mm Outside Diameter - 98.4mm Bolt Circle Diameter - 14mm Bolt Hole to suit M12 Bolts - 4 Bolt Holes - 12.7mm Flange Thickness - Boss Diameter Top 61.9mm Bottom 69.9mm - Height 12.7mm
2" Nominal Bore - 60.3mm Pipe OD - 152.4mm Outside Diameter - 114.3mm Bolt Circle Diameter - 18mm Bolt Hole to suit M16 Bolts - 4 Bolt Holes - 12.7mm Flange Thickness - Boss Diameter Top 74.6mm Bottom 79.4mm - Height 12.7mm
2 1/2" Nominal Bore - 76.1mm Pipe OD - 165.1mm Outside Diameter - 127.0mm Bolt Circle Diameter - 18mm Bolt Hole to suit M16 Bolts - 4 Bolt Holes - 12.7mm Flange Thickness - Boss Diameter Top 90.5mm Bottom 92.9mm - Height 15.9mm
3" Nominal Bore - 88.9mm Pipe OD - 184.2mm Outside Diameter - 146.1mm Bolt Circle Diameter - 18mm Bolt Hole to suit M16 Bolts - 4 Bolt Holes - 12.7mm Flange Thickness - Boss Diameter Top 106.4mm Bottom 111.9mm - Height 15.9mm
