Fischer - BZP
Fischer - BZP
Fischer - BZP
Fischer - BZPFischer - BZPFischer - BZP

Fischer - BZP - Chemical Resin Studs

by Fischer Fixings
From £23.58
From £28.30
per 100
Size/Model No. Stock No. Price per hundred Available
Stock		Quantity
M8 x 110mm TL Resinstud531574101-32-59
£23.58
£28.30
cat: £23.58
cat: £28.30
147
M10 x 130mm TL Resinstud531576101-32-67
£34.57
£41.48
cat: £34.57
cat: £41.48
1000+
M12 x 160mm TL Resinstud531577101-32-75
£46.37
£55.64
cat: £46.37
cat: £55.64
453
M16 x 190mm TL Resinstud531578101-32-83
£109.40
£131.28
cat: £109.40
cat: £131.28
727
M20 x 260mm TL Resinstud531579101-32-91
£246.35
£295.62
cat: £246.35
cat: £295.62
268
M24 x 300mm TL Resinstud531581101-33-17
£516.29
£619.55
cat: £516.29
cat: £619.55
19

Product Description

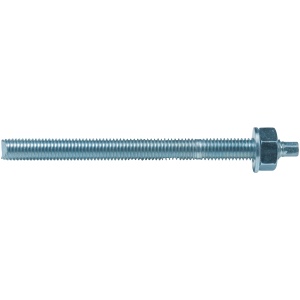

The fischer threaded rod FTR is a cost-effective system component without approval for the fischer resin capsules RSB and RM II and for fischer injection mortars. For single fixations, the application with the pre-portioned resin capsule is particularly cost-effective. The hot-dip galvanised and zinc-plated steel threaded rods enable extremely diverse applications. The system is particularly suitable for cost-effective fixations indoors where no approval is relevant. The FTR is set with the bonded anchor setting tool and a hammer drill using rotating and hitting motions. During the resin capsule setting process, the capsules are destroyed by the characteristic oblique edge and are mixed, and the mortar is activated.

Features


Advantages

  • The threaded rod FTR is the cost-effective solution for applications with resin capsules where no approval is required.

    Description
  • Threaded rod for use with Injection mortar FIS or 2-component resin capsule RM.
  • The resin adheres to the entire surface of the threaded rod, bonding it to the wall of the drilled hole..
  • For pre-positioned installation.
  • Carbon steel grade 5.8.
  • Threaded rods are supplied with an easy-to-use hexagonal installation drive and a setting tool included in each package.
  • Thread diameter 8 to 30 mm.
  • Zinc-plated steel version for indoor use.
  • Hot-dipped galvanised version for temporary outdoor fixings.

    Specification


    Applications

  • Anchorings with resin capsules without approval
  • Anchorings with injection mortars without approval

    Building Materials

     Suitable for:

  • Non-cracked concrete  C12/15
  • Natural stone with dense structure
