Fischer FSA-B - Nut Type
Fischer FSA-B - Nut Type
Fischer FSA-B - Nut Type
Fischer FSA-B - Nut Type
Fischer FSA-B - Nut Type
Fischer FSA-B - Nut Type
Chevron Down
Fischer FSA-B - Nut TypeFischer FSA-B - Nut TypeFischer FSA-B - Nut TypeFischer FSA-B - Nut TypeFischer FSA-B - Nut TypeCE Marked

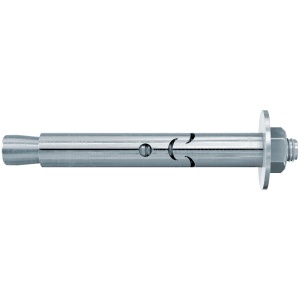

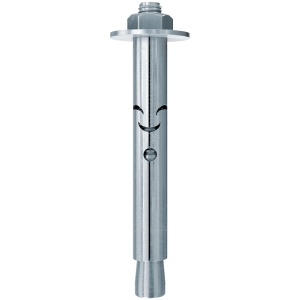

Fischer - Nut - FSA- B Type - Sleeve Anchor - BZP

by Fischer Fixings
From £10.71
From £12.85
per 100
Size/Model No. Stock No. Price per hundred Available
Stock		Quantity
8 x 40mm 08/0842663101-37-39
£12.21
£14.65
cat: £12.21
cat: £14.65
2
8 x 65mm 08/3093805101-37-47
£10.71
£12.85
cat: £10.71
cat: £12.85
5
8 x 85mm 08/5542664101-37-54
£20.90
£25.08
cat: £20.90
cat: £25.08
2 days
10 x 50mm 10/1093807101-37-62
£16.11
£19.33
cat: £16.11
cat: £19.33
2 days
12 x 129mm 12/7593813101-38-20
£54.74
£65.69
cat: £54.74
cat: £65.69
15
16 x 65mm 16/1242668101-38-38
£40.79
£48.95
cat: £40.79
cat: £48.95
2 days
16 x 110mm 16/5042660101-38-46
£63.82
£76.58
cat: £63.82
cat: £76.58
2 days
16 x 140mm 16/8042669101-38-53
£118.17
£141.80
cat: £118.17
cat: £141.80
2 days

Product Description

The fischer sleeve anchor FSA-B is made from zinc-plated steel with a nut and washer for structural anchors made from zinc-plated steel. The fischer sleeve anchor is ideal for the fixation of non-safety-relevant anchorings such as cantilevers, handrails, and cable trays in non-cracked concrete. The optimised anchor geometry offers a high shear load resistance and a high level of safety. The FSA-B is installed in a time-saving push-through installation. During tightening, the cone is pulled into the expansion sleeve and expands it against the drill hole wall. The recesses act as a crumple zone to take the torque slippage. In this way, the fixture is pulled onto the base material.

Features


Advantages

  • The optimised geometry minimises setting energy and enables the use in extremely narrow spaces. This allows for user-friendly installation.
  • The anchor design makes it possible to use different head shapes for flexible design solutions: Hexagon head (type S), bolt version with nut and washer (type B).
  • The detachable screw connection allows for surface flush removal.

    Specification


    Applications

  • Handrails
  • Consoles
  • Ladders
  • Cable trays
  • Gates
  • Façades
  • Temporary or structural fixings

    Building materials

     Suitable for:

  • Concrete C12/15 to C20/25, non-cracked
  • Natural stone with dense structure

    Functionality
  • The FSA is suitable for push-through installation.

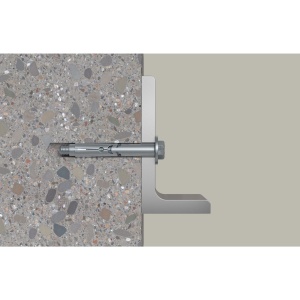

  • When applying the torque, the cone is pulled into the expansion sleeve and expands it against the drill hole wall.
  • The half-moon shaped recesses act as a crumple zone to take the torque slippage, so that the attachment is pulled onto the anchor base.
