Fischer - Type GB - Aircrete Concrete Fixing

by Fischer Fixings
From £68.99
From £82.79
per 100
Size/Model No. Stock No. Price per hundred Available
Stock
Quantity
8mm 50491101-46-38
£68.99
£82.79
cat: £68.99
cat: £82.79
3 days
10mm 50492101-46-46
£86.80
£104.16
cat: £86.80
cat: £104.16
3 days

Product Description

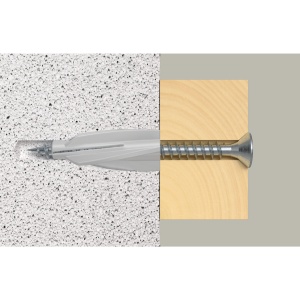

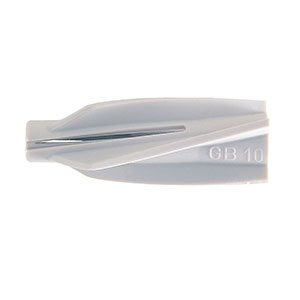

The fischer Aircrete anchor GB is an officially approved special anchor for safety-relevant fixings in aerated concrete. The GB, made from high-quality nylon, is hammered in rotary mode after pre-drilling. The characteristic outer ribs ensure an interlocking connection between the building material and anchor. The fischer Aircrete anchor GB is ideal for fixing facade and roof constructions as well as railings in aerated concrete

Features


Advantages

  • The spiral-shaped outer ribs cut a positive fit in the soft building material, thus ensuring the best pressure distribution and load-bearing capacity.
  • Can be applied with a hammer - there is no need for special tools, thus saving time and money for the installation.
  • The GB can also be used safely outside (e.g. in façade installation) when combined with the approved fischer safety screw in A4.

    Specification


    Applications

  • Light cable trays

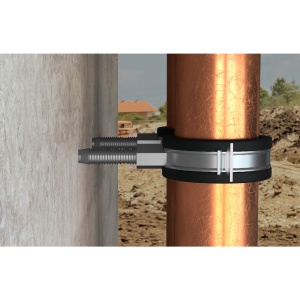

  • Pipelines
  • Guard rails
  • Façade and roof constructions made of wood and metal
  • Light canopy brackets
  • Letter boxes
  • Trellis

    Building materials

    Suitable for:

  • Aerated concrete with compressive strength 2 to 4 N/mm²
  • Aerated concrete wall or ceiling boards with compressive strength 3.3 to 4.4 N/mm²

    Functionality

  • The GB is suitable for pre-positioned installation.
  • The spiral-shaped outer ribs ensure a positive fit connection between the building material and anchor.
  • The required screw length is given by: Anchor length + fixture thickness + 1 x screw diameter.
  • Use rotary drilling to create the drill hole
  • Can be used in unplastered aerated concrete
