Fischer - RM II Sold as Box
Fischer - RM II Sold as Box
Fischer - RM II Sold as Box
Fischer - RM II Sold as BoxFischer - RM II Sold as BoxFischer - RM II Sold as Box

Resin Capsule - Fischer - RM II Sold as Box

by Fischer Fixings
From £8.22
From £9.86
each
Size/Model No. Stock No. Price each Available
Stock		Quantity
8mm Box of 10539796180-93-00
£11.48
£13.78
cat: £11.96
cat: £14.35
4
10mm Box of 10539797180-93-59
£8.22
£9.86
cat: £8.56
cat: £10.27
14
12mm Box of 10539798180-93-67
£9.00
£10.80
cat: £9.37
cat: £11.24
52
16mm Box of 10539800180-93-75
£14.56
£17.47
cat: £15.17
cat: £18.20
54
20mm Box of 10539802180-93-83
£40.22
£48.26
cat: £41.90
cat: £50.28
28
24mm Box of 10539803180-93-91
£31.08
£37.30
cat: £32.38
cat: £38.86
3 days

Product Description

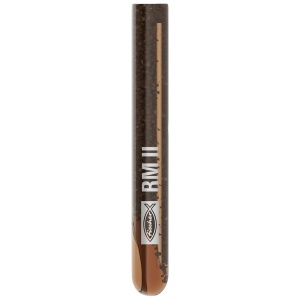

The fischer resin capsule RM II together with the threaded rod RG M is the first capsule with European Technical Assessment Option 1 for cracked concrete, which does not require hole cleaning. Steel constructions, machines or staircases outside and indoors can be fixed with the resin anchor. The resin capsule can be used with the fischer threaded rod RG M and the fischer internal threaded anchor RG MI. Hole cleaning is not necessary with the resin capsule RM II, however comparatively high loads can be supported. This allows for a fast work progress.

Features


Advantages

  • RM II is the first bonded anchor with threaded rod RG M or internal-threaded anchor RG M I that does not need drill hole cleaning. This allows fast progress and efficient installation.
  • In addition, the construction site is less affected by drill dust. This increases safety for the user.
  • The pre-portioned resin capsule is easy to use and particularly suitable for individual applications and overhead installations.
  • Use of the internal threaded anchor RG MI allows the surface-flush removal and reuse of the fixing point, and therefore offers the best possible flexibility.

    Specification


    Applications

     Suitable for:

  • Steel constructions

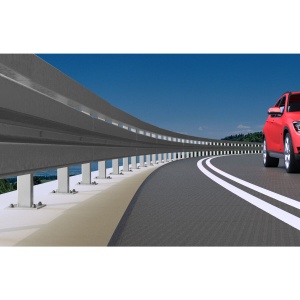

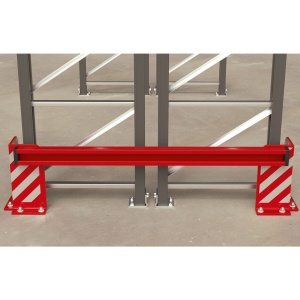

  • Guard rails
  • Staircases
  • Column bases
  • Machines
  • Masts
  • Removable fixings
  • Temporary fixings, e.g. for machines
  • Scaffold anchoring

    Approved for:
  • Overhead installations
  • Water-filled drill holes

    Building materials

     Approved for:

  • Concrete C20/25 to C50/60, cracked and non-cracked

    Suitable for:

  • Natural stone with dense structure

    Approvals
  • ETA-16/0340
  • DoP No. 0362
  • GA-2016/093

    Functionality
  • The resin capsule RM II in conjunction with the threaded rod RG M or internal-threaded anchor RG MI is suitable for pre-positioned installation.
  • The 2-component resin capsule RM II contains styrene-free vinylester resin and hardener.
  • The fixing element is set using a hammer drill and the accompanying setting tool in rotating and hitting motions.
  • During setting, the oblique edge of the fixing element destroys the capsule, and mixes and activates the mortar.
  • The mortar bonds the entire surface of the anchor with the drill hole wall and seals the drill hole.
