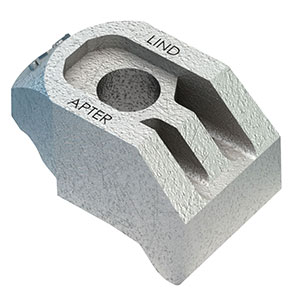

Lindapter - Type AF High Slip Resistant- Girder Clamp - HDG

by Lindapter
From £7.23
From £8.68
each
Size/Model No. Stock No. Price each Available
Stock		Quantity

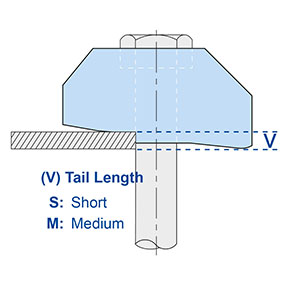

M12 x 5mm Short TailAF12S193-58-08
£7.23
£8.68
cat: £7.23
cat: £8.68
128
M12 x 12.5mm Medium TailAF12M193-58-16
£8.92
£10.70
cat: £8.92
cat: £10.70
90
M16 x 8mm Short TailAF16S193-58-24
£13.32
£15.98
cat: £13.32
cat: £15.98
304
M16 x 15mm Medium TailAF16M193-58-32
£12.74
£15.29
cat: £12.74
cat: £15.29
0 days
M20 x 10mm Short TailAF20S193-58-40
£17.20
£20.64
cat: £17.20
cat: £20.64
120
M20 x 18mm Medium TailAF20M193-58-57
£17.33
£20.80
cat: £17.33
cat: £20.80
4 days
M24 x 15mm Short TailAF24S193-58-65
£39.00
£46.80
cat: £39.00
cat: £46.80
44
M24 x 30mm Medium TailAF24M193-58-73
£39.00
£46.80
cat: £39.00
cat: £46.80
90

Product Description

ParkerTools stock a variety of steelwork fixings and fasteners including Lindapter cavity, girder, support & floor fixings. Wide range of products in stock. High quality fixings. Next day delivery on all stock. Low prices. Fixings, HOLLO-Bolt, Girder clamps, Floor clamps, structural fasteners.

Features

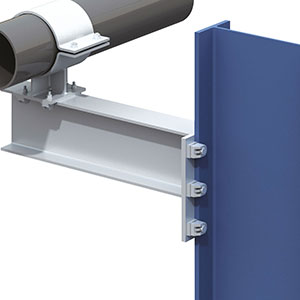

  • The Type AF is a popular steelwork fixing connection with high load capacities
  • This high friction clamp has a recessed top to hold the bolt head captive whilst the nut is tightened
  • Can be combined with the Type CF
  • Skirt prevents the clamp rotating during installation
  • Tail of the Type AF spans across slotted holes. For flanges up to 10°
  • Highest load capacities of all Lindapters High Slip Resistance clamps
  • Hot dip galvanised as standard.
  • High slip resistance for tensile, frictional and combined load applications
  • Static slip resistance of 70kN or tensile resistance 250kN (4-bolt config., size M24)
  • Recess holds the bolt head captive (property class 8.8 or 10.9 bolts)
  • Suitable for parallel and tapered flanges up to 10°
  • The tail spans slotted clearance holes
