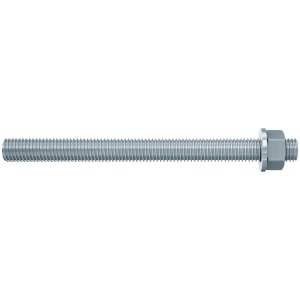

The fischer threaded rod FIS A is made from zinc-plated, steel grade 8.8. The threaded rod is a system component for the various fischer injection mortars. Together with the injection mortars, the fischer threaded rods are suitable and approved for all subsurfaces. A thorough cleaning of the drill hole is recommended for the maximum load-bearing capacity of the system. The system, made from zinc-plated threaded rods in conjunction with fischer injection mortars, is suitable and approved for fixings in dry interiors.
Features
The universal solution for various fischer injection mortars. For a manageable range and simpler storage.

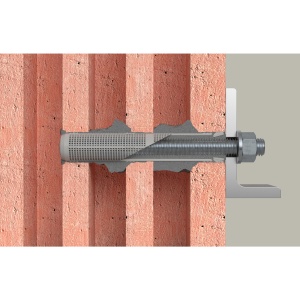

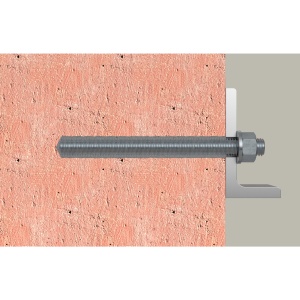

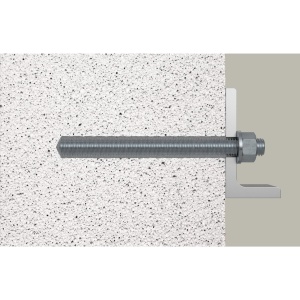

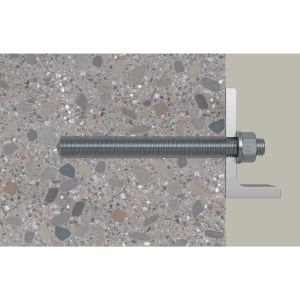

Approved for anchorage in cracked and non-cracked concrete, solid brick masonry, perforated masonry, and aerated concrete in combination with various fischer injection mortars.
Optimum load adaptation due to variable anchorage depths. This lowers installation and material costs.
Advantages
The threaded rod FIS A can be used with almost every fischer injection mortar (except Highbond special mortar FIS HB). It can be individually selected based on requirements, thus allowing for a wide range of applications.
The wide range of approved threaded rods FIS A from M6 to M30 allows for various applications.
Please refer to the approvals of the injection mortar used.
The system is the first to offer lightweight, dynamic load specifications in an ETA mounted with FIS SB injection mortar and RSB mortar in cracked and non-cracked concrete.
Specification
Applications
Anchorings with each of the fischer injection mortars such as FIS PM, FIS SB, FIS EM Plus, FIS EB, FIS V, FIS VL, FIS P Plus, FIS P, and FIS Green.
Building materials
In connection with several fischer injection mortars the anchor rod FIS A is approved or suitable for different building materials.
Approvals
ETA-02/0024
ETA-20/0603
ETA-19/0501
Functionality
The anchor rod FIS A is suitable for pre-positioned and push-through installation.
FIS A is set manually into the drill hole, by lightly rotating it until it reaches the drill hole base.
