Key Clamp Type 169
Key Clamp Type 169
Key Clamp Type 169Key Clamp Type 169

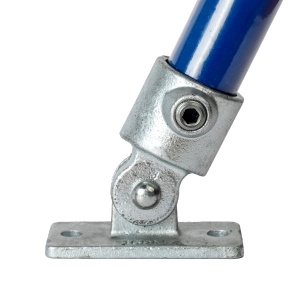

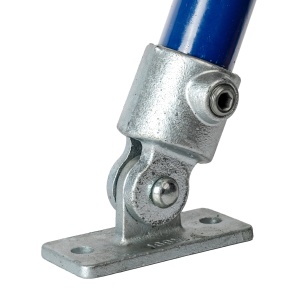

Swivel Flange - Key Clamp Type 169

by Key Clamp
From £3.38
From £4.06
each

Available for Collection or Delivery

store collection
Store Pickup

Collect

Thu Jun 19
th
FREE
store collection
Standard

As soon as

Fri Jun 20
th
FREE
store collection
Pre-Noon

As soon as

Fri Jun 20
th
£10.00
store collection
Pre-10:30am

As soon as

Fri Jun 20
th
£15.00
store collection
Pre-9:00am

As soon as

Fri Jun 20
th
£30.00
£3 .38
£4 .06
Free delivery: Fri Jun 20th
Fastest delivery: 9am Fri Jun 20th
In Stock
Quantity:
Padlock Secure Transactions
Technical Specifications
SizeTubeWeight
RefO.D (mm)Kg/Pc
B33.70.71
C42.40.86
D48.30.96

Product Description

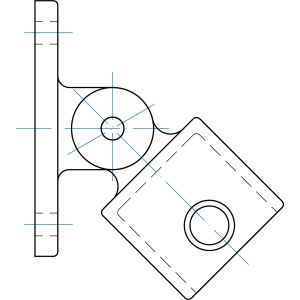

A NON STRUCTURAL swivel locating flange combination fitting, it should never be used as an angled base fitting for guardrail systems. The swivel has a travel of approximately 85 degree from the vertical in each direction. NO LATERAL LOADS.

Specification


Technical Data

  • Manual: BS EN 1562:1997 black heart malleable iron, BS EN 1536 ductile iron
  • Thread: BS2779:1986 1/8, 1/4, 3/8
  • Grub Screw: DIN 916
  • Surface Treatment: BS EN 1461:1999 hot dip galvanizing. IRAM 1451-3:1995 epoxy coating
  • Tube standard: BS EN 10255 (formerly BS1387)
