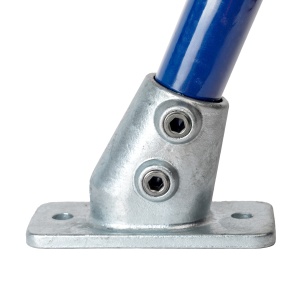

Angle Base Flange - Key Clamp Type 252 11-30 Deg
by Key Clamp
From £6.12
From £7.34
eachAvailable for Collection or Delivery
Store Pickup
Collect
Tue Jun 10
thFREE
Standard
As soon as
Wed Jun 11
thFREE
Pre-Noon
As soon as
Wed Jun 11
th£10.00
Pre-10:30am
As soon as
Wed Jun 11
th£15.00
Pre-9:00am
As soon as
Wed Jun 11
th£30.00
£6 .12
£7 .34
Free delivery: Wed Jun 11th
Fastest delivery: 9am Wed Jun 11th
In Stock
Quantity:
Secure Transactions
Technical Specifications
| Size | Tube | Dimensions (mm) | Weight | ||||
|---|---|---|---|---|---|---|---|
| Ref | O.D (mm) | a | b | c | d | Dia | Kg/Pc |
| C | 42.4 | 76 | 70 | 155 | 115 | 14 | 1.15 |
| D | 48.3 | 85 | 75 | 165 | 125 | 14 | 1.53 |
Product Description
Base flange for sloping sites, adjustable from 11 degree to 30 degree. As the fixing holes in the base cannot be fixed in line with the applied load, it is only intended for light loads or structures which are sufficiently supported by virtue of their design. Where a greater load is required, type 132 is normally used
Specification
Technical Data
