JCP Through Bolt - Standard - Zinc Plated Yellow Passivated

by JCP

From £6.56£7.87 per 100

Inc VAT

Ex VAT

Size/Model No.	Stock No.	Price per hundred	Stock	Quantity

M6 x 45mm TB06045	15-34-29	_£9^.05 _£10^.86 _{cat: £9}^.05 _{cat: £10}^.86	19
M6 x 55mm TB06055	15-34-37	_£6^.56 _£7^.87 _{cat: £6}^.56 _{cat: £7}^.87	100
M6 x 85mm TB06085	28-32-00	_£8^.31 _£9^.97 _{cat: £8}^.31 _{cat: £9}^.97	235
M8 x 50mm TB08050	15-33-04	_£9^.83 _£11^.80 _{cat: £9}^.83 _{cat: £11}^.80	144
M8 x 65mm TB08065	15-33-12	_£11^.29 _£13^.55 _{cat: £11}^.29 _{cat: £13}^.55	131
M8 x 80mm TB08080	155-05-08	_£11^.69 _£14^.03 _{cat: £11}^.69 _{cat: £14}^.03	550
M8 x 100mm TB08100	155-05-32	_£10^.80 _£12^.96 _{cat: £10}^.80 _{cat: £12}^.96	165
M8 x 130mm TB08130	155-05-40	_£15^.88 _£19^.06 _{cat: £15}^.88 _{cat: £19}^.06	305
M10 x 65mm TB10065	15-33-53	_£16^.18 _£19^.42 _{cat: £16}^.18 _{cat: £19}^.42	138
M10 x 75mm TB10075	47-12-01	_£17^.29 _£20^.75 _{cat: £17}^.29 _{cat: £20}^.75	414
M10 x 90mm TB10090	15-33-61	_£18^.69 _£22^.43 _{cat: £18}^.69 _{cat: £22}^.43	578
M10 x 100mm TB10100	187-15-08	_£16^.56 _£19^.87 _{cat: £16}^.56 _{cat: £19}^.87	769
M10 x 120mm TB10120	15-33-79	_£22^.80 _£27^.36 _{cat: £22}^.80 _{cat: £27}^.36	915
M10 x 150mm TB10150	194-65-24	_£28^.64 _£34^.37 _{cat: £28}^.64 _{cat: £34}^.37	207
M10 x 175mm TB10175	193-88-36	_£32^.29 _£38^.75 _{cat: £32}^.29 _{cat: £38}^.75	10
M12 x 80mm TB12080	15-33-87	_£23^.10 _£27^.72 _{cat: £23}^.10 _{cat: £27}^.72	803
M12 x 100mm TB12100	15-33-95	_£28^.43 _£34^.12 _{cat: £28}^.43 _{cat: £34}^.12	1000+
M12 x 120mm TB12120	15-34-03	_£28^.64 _£34^.37 _{cat: £28}^.64 _{cat: £34}^.37	1000+
M12 x 140mm TB12140	15-34-11	_£38^.38 _£46^.06 _{cat: £38}^.38 _{cat: £46}^.06	1000+
M12 x 180mm TB12180	155-05-57	_£50^.39 _£60^.47 _{cat: £50}^.39 _{cat: £60}^.47	1000+
M16 x 105mm TB16105	15-34-45	_£55^.39 _£66^.47 _{cat: £55}^.39 _{cat: £66}^.47	1000+
M16 x 125mm TB16125	15-34-52	_£62^.58 _£75^.10 _{cat: £62}^.58 _{cat: £75}^.10	898
M16 x 150mm TB16150	92-09-26	_£71^.04 _£85^.25 _{cat: £71}^.04 _{cat: £85}^.25	1000+
M16 x 175mm TB16175	51-18-65	_£77^.41 _£92^.89 _{cat: £77}^.41 _{cat: £92}^.89	1000+
M16 x 220mm TB16220	162-73-48	_£84^.33 _£101^.20 _{cat: £84}^.33 _{cat: £101}^.20	1000+
M20 x 130mm TB20130	40-45-74	_£94^.60 _£113^.52 _{cat: £94}^.60 _{cat: £113}^.52	406
M20 x 160mm TB20160	15-34-60	_£114^.88 _£137^.86 _{cat: £114}^.88 _{cat: £137}^.86	592
M20 x 215mm TB20215	42-46-14	_£163^.45 _£196^.14 _{cat: £163}^.45 _{cat: £196}^.14	1000+
M24 x 180mm TB24180	155-05-65	_£186^.60 _£223^.92 _{cat: £186}^.60 _{cat: £223}^.92	76
M24 x 260mm TB24260	155-05-73	_£234^.33 _£281^.20 _{cat: £234}^.33 _{cat: £281}^.20	87

Technical Specifications

THROUGHBOLT MASONRY ANCHORS - ZINC PLATED

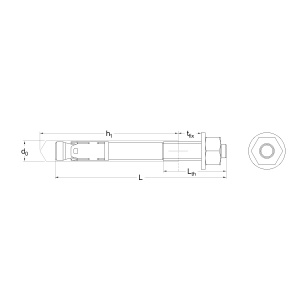

Anchor Hole	Anchor Length	Thread Length	Min. Hole Depth	Max Fixture	Box	Supplier
Size mm d0	mm L	mm Lth	mm H1	Thickness mm tfix	Quantity	Part Number
6	45	18	35	5	100	TB06045
6	55	30	35	15	100	TB06055
6	85	60	35	45	100	TB06085
8	50	20	40	5	100	TB08050
8	65	30	40	20	100	TB08065
8	80	45	40	35	50	TB08080
8	100	60	40	55	50	TB08100
8	130	85	40	85	50	TB08130
10	65	30	50	8	50	TB10065
10	75	35	50	33	50	TB10075
10	90	55	50	33	50	TB10090
10	100	60	50	43	50	TB10100
10	120	80	50	63	20	TB10120
10	150	100	50	93	20	TB10150
10	175	100	50	118	20	TB10175
12	80	35	65	5	20	TB12080
12	100	55	65	25	20	TB12100
12	120	70	65	45	20	TB12120
12	140	90	65	65	20	TB12140
12	180	100	65	105	20	TB12180
16	105	55	85	10	20	TB16105
16	125	72	85	30	20	TB16125
16	150	90	85	55	20	TB16150
16	175	110	85	80	10	TB16175
16	220	120	85	125	10	TB16220
20	130	75	100	20	10	TB20130
20	160	95	100	50	10	TB20160
20	215	115	100	105	10	TB20215
24	180	105	120	45	10	TB24180
24	260	150	120	125	5	TB24260

Product Description

The throughbolt is the ultimate through fixing with the hole diameter as the bolt diameter. It is ideal for bolting in place awkward fixtures without the need for marking out, removing and repositioning. It is a torque-controlled anchor suitable for use in concrete over C20/25 strength

Features

Fast and Secure Installation

Three way Expansion Sleeve

Reaction to Fire Class A1

Through Fixing

Zinc Plated Minimum 5µm

Wide Range of Sizes

Finish: Zinc and Yellow Plated (ZYP) Material: Steel
