Standard - Through Bolt / Anchor Fixing - Galvanised

by Hot Dipped Galv

From £18.38£22.06 per 100

Inc VAT

Ex VAT

Size/Model No.	Stock No.	Price per hundred	Stock	Quantity

M8 x 50mm TG08050	155-05-81	_£23^.35 _£28^.02 _{cat: £23}^.35 _{cat: £28}^.02	9
M8 x 75mm TG08075	155-05-99	_£18^.38 _£22^.06 _{cat: £18}^.38 _{cat: £22}^.06	1000+
M8 x 95mm TG08095	155-06-07	_£21^.79 _£26^.15 _{cat: £21}^.79 _{cat: £26}^.15	2 days
M8 x 120mm TG08120	155-06-15	_£22^.63 _£27^.16 _{cat: £22}^.63 _{cat: £27}^.16	36
M10 x 60mm TG10060	155-06-23	_£23^.10 _£27^.72 _{cat: £23}^.10 _{cat: £27}^.72	50
M10 x 70mm TG10070	155-06-31	_£24^.44 _£29^.33 _{cat: £24}^.44 _{cat: £29}^.33	44
M10 x 80mm TG10080	155-06-49	_£26^.93 _£32^.32 _{cat: £26}^.93 _{cat: £32}^.32	170
M10 x 100mm TG10100	155-06-56	_£29^.16 _£34^.99 _{cat: £29}^.16 _{cat: £34}^.99	493
M10 x 125mm TG10125	155-06-64	_£30^.20 _£36^.24 _{cat: £30}^.20 _{cat: £36}^.24	270
M12 x 85mm TG12085	155-06-72	_£58^.13 _£69^.76 _{cat: £58}^.13 _{cat: £69}^.76	96
M12 x 100mm TG12100	155-06-80	_£64^.43 _£77^.32 _{cat: £64}^.43 _{cat: £77}^.32	431
M12 x 115mm TG12115	155-06-98	_£43^.18 _£51^.82 _{cat: £43}^.18 _{cat: £51}^.82	966
M12 x 145mm TG12145	155-07-06	_£52^.24 _£62^.69 _{cat: £52}^.24 _{cat: £62}^.69	1000+
M12 x 180mm TG12180	155-07-14	_£59^.54 _£71^.45 _{cat: £59}^.54 _{cat: £71}^.45	342
M16 x 110mm TG16110	155-07-22	_£120^.86 _£145^.03 _{cat: £120}^.86 _{cat: £145}^.03	2 days
M16 x 125mm TG16125	155-07-30	_£79^.51 _£95^.41 _{cat: £79}^.51 _{cat: £95}^.41	520
M16 x 150mm TG16150	155-07-55	_£85^.94 _£103^.13 _{cat: £85}^.94 _{cat: £103}^.13	1000+
M16 x 200mm TG16200	155-07-63	_£125^.95 _£151^.14 _{cat: £125}^.95 _{cat: £151}^.14	1000+
M20 x 170mm TG20170	155-07-71	_£172^.81 _£207^.37 _{cat: £172}^.81 _{cat: £207}^.37	149
M20 x 220mm TG20220	155-07-89	_£231^.25 _£277^.50 _{cat: £231}^.25 _{cat: £277}^.50	64
M20 x 280mm TG20280	155-07-97	_£449^.00 _£538^.80 _{cat: £449}^.00 _{cat: £538}^.80	6

Technical Specifications

THROUGHBOLT MASONRY ANCHORS - ZINC PLATED

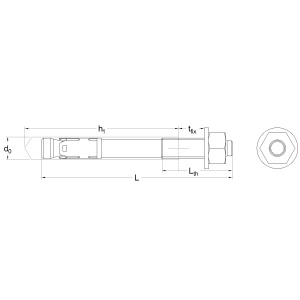

Anchor Hole	Anchor Length	Thread Length	Min. Hole Depth	Max Fixture	Box	Supplier
Size mm d0	mm L	mm Lth	mm H1	Thickness mm tfix	Quantity	Part Number
8	50	15	45	5*	100	TG08050
8	75	40	65	10	100	TG08075
8	95	50	65	30	100	TG08095
8	120	85	65	55	100	TG08120
10	60	20	50	10*	50	TG10060
10	70	30	50	20*	50	TG10070
10	80	40	70	10	50	TG10080
10	100	55	70	30	50	TG10100
10	125	80	70	50	50	TG10125
12	85	40	70	10*	25	TG12085
12	100	55	90	5	25	TG12100
12	115	60	90	20	25	TG12115
12	145	95	90	50	25	TG12145
12	180	110	90	85	25	TG12180
16	110	50	85	15*	20	TG16110
16	130	65	110	10	20	TG16125
16	150	90	110	30	20	TG16150
16	200	115	110	80	20	TG16200
20	170	100	130	25	10	TG20170
20	220	125	130	75	10	TG20220
20	280	150	130	135	10	TG20280

Product Description

A through bolt / anchor bolt / concrete anchor is used to attach objects or structures to concrete. There are many types of through bolts / anchor bolts. All consist of a threaded end, to which a nut and washer can be attached for the external load.

It is split three ways for even stress distribution to the concrete. The deep sleeve & matching deep land on the bolt maximise the expansion area for increased holding power.

Features

Hex socket head

Galvanised

A through bolt / anchor bolt is used to attach objects or structures to concrete

Available in zinc plated
