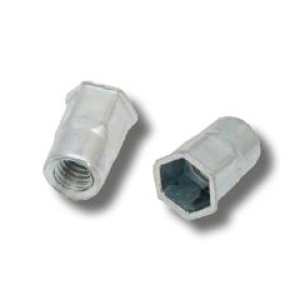

JRP Reduced Head Part Hexagon
JRP Reduced Head Part Hexagon

JRP - Reduced Head Part Hexagon Body Open Blind Rivets Nut Steel BZP

by JRP
From £11.48£13.78 each
Inc VAT
Ex VAT
Size/Model No. Stock No. Price each StockQuantity
M4 x 12.0mm Box of 1000RNSRHPH0420216-43-17
£22.60
£27.12
cat: £22.60
cat: £27.12
3 days
M5 x 13.0mm Box of 1000RNSRHPH0525216-43-25
£23.68
£28.42
cat: £23.68
cat: £28.42
3 days
M6 x 16.0mm Box of 500RNSRHPH0635216-43-33
£12.72
£15.26
cat: £12.72
cat: £15.26
3 days
M8 x 17.5mm Box of 250RNSRHPH0835216-43-41
£11.48
£13.78
cat: £11.48
cat: £13.78
3 days
M10 x 21.0mm Box of 250RNSRHPH1040216-43-58
£18.10
£21.72
cat: £18.10
cat: £21.72
3 days

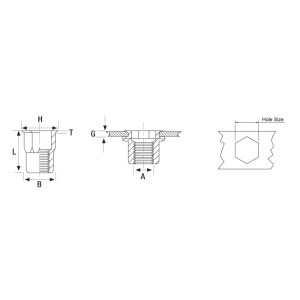

Technical Specifications
ThreadGrip RangeHoleBodyFlangeFlangeBody OverallMax TighteningTensileBox
SizeMin - MaxSizeDiameterDiameterThicknessLengthTorqueStrengthQuantity
mm (A)mm (G)mmmm (B)mm (H)mm (T)mm (L)NmN
M40.5 - 2.06.05.97.00.512.04.068001000
M50.5 - 2.57.06.98.00.513.06.5100001000
M61.0 - 3.59.08.910.00.616.012.015000500
M81.0 - 3.511.010.912.00.717.531.027000250
M101.0 - 4.013.012.914.50.821.042.028500250
Product Description

Reduced head part hexagon body open blind rivet nuts. The same as reduced head full hexagon nuts but with a slight reduction in torque loading. Used in a multitude of industries such as aerospace, automotive, rail, HVAC, white goods, electronics, as well as the manufacture of heavy goods, bumper systems, seating and vehicle chassis.

Specification


  • Body Material - Steel (AISI1008) Zinc&Clr Tri8.
  • Grip range and test data are guide figures only.
